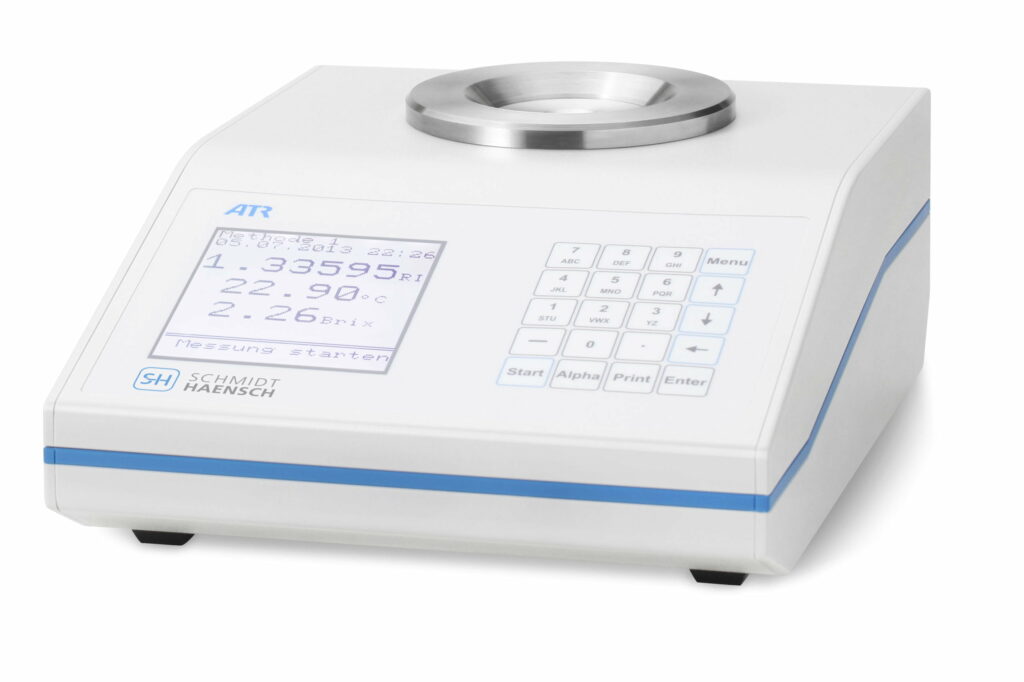

The SCHMIDT + HAENSCH ATR BR is a stand-alone, critical angle refractometer for measuring liquid media from low to high viscosity, independent of opacity and color. It is adaptable to different applications in production and laboratory thanks to a broad variety of configurations while having an excellent price-performance ratio.
A sample volume of 0.3 ml is sufficient for a very stable measurement of high quality and precision. The software of the ATR BR, designed close to the practice makes it possible to calculate the mean value and to determine standard deviation and adjustable measuring delay for special measurement in dependence of the temperature.
In the chemical industry, ATR BR can be used for analyzing a range of compounds, such as solvents, organic polymers, distilled products, or solutions of inorganic compounds. In the food and beverage industry, the ATR BR can be applied to analyze yoghurt, jam, fruit extract, syrup, honey, coffee extract, vegetable fat, albumen, chocolate, milk, and baby foods. The quality of soft drinks, fruit juice, wine, and beer can be controlled. Medical applications include analysis of serums, blood, and urine. In the petrochemical industry, ATR BR can be used to monitor e.g. oils, fats, waxes, naphthalenes, raw oils, varnishes, paints.
Up to ten user-defined scales, one of which is programmed as Brix scale by the factory, can be programmed. The casing design offers more space for a bigger LCD display and a splash proofed foil keyboard enabling to batch numbers to be entered directly. The user friendliness and easy handling of the ATR BR also allows for the creation and printing of forms. All functions may also be controlled via PC using the remote control program. The ATR BR also has a serial to Ethernet (local area network) converter for data transfer.
|Measuring scales||Refractive Index (RI), Sucrose (%Brix), others on request|
|Measuring range||1.32000 – 1.54000 RI / 100% Brix|
|Resolution||0.00001 RI / 0.01% Brix|
|Precision||Measuring range 1.32 – 1.44: ± 0.00002 RI / ± 0.01% Brix *; Measuring range 1.44 – 1.54: ± 0.00003 RI / ± 0.01% Brix *|
|Reproducibility||± 0.00001 RI / ± 0.01% Brix|
|Ambient temperature||+ 10 °C to + 40 °C|
|Automatic temperature compensation||+ 5 °C to + 50 °C|
|Temperature measurement||NTC sensor for measurement of sample temperature placed inside the prism|
|Technical control sample||No control|
|Measurement mode||Single measurement|
|Light source / wavelength||LED, interference filter 589 nm|
|Display||Back-lit LCD, 16 x 16 characters|
|Operation||20 key membrane including function keys|
|Interfaces||1 x RS232 C serial and parallel|
|Standard model||ATR BR|
|Conformity||International Pharmacopoeia, ASTM, AOAC, DIN, FDA, ICUMSA and others|
